Description
Tilt/Trim Motor Yamaha 6H1-43880-02, 1992, 1993, 1995 50-90HP, 1993, 1995, 50-90HP, 1996 70-90HP
Description

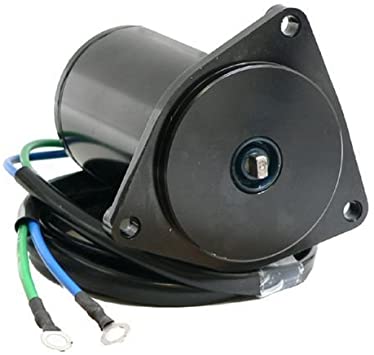

This is a Brand New Tilt/Trim Motor for Yamaha
Models:
1992 50-90HP
1993 50-90HP
1994 40-90HP
1995 50-90HP
1996 70-90HP
1997-Present 60-90HP
Replaces:
MES Motorcycle & Marine
T1159M
Remy Small Motor
RT05015
Sierra Marine
18-6781
Yamaha
6H1-43880-02
OEM: Yamaha
Voltage: 12V
Rotation: Reversible
Field Housing OD: 64 mm / 2.520 in
Overall Length: 119 mm / 4.685 in
Shaft OD: 8 mm / 0.315 in
Shaft Notes: 4 mm Drive Tang
Approximate Weight: 4 lbs / 1.82 kg
Note:
2-Wire Configuration with Ring Terminal Ends
(3) 6 mm Unthreaded Mounting Holes
